TPE U Channel – 7mm x 24mm x 50m

Item Code: RC1165

To fit panel: 3mm
Material:TPE
Size:7mm x 24mm
Hardness (Shore A):60°
Clamping range:3mm only
Strip length:50m
Colour:Black
Estimated delivery:1 to 2 weeks

£210.98 exc. VAT£253.18 inc. VAT


Key Features & Benefits

  • Large gripping arms provide wider anchor point reducing the need for adhesive
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

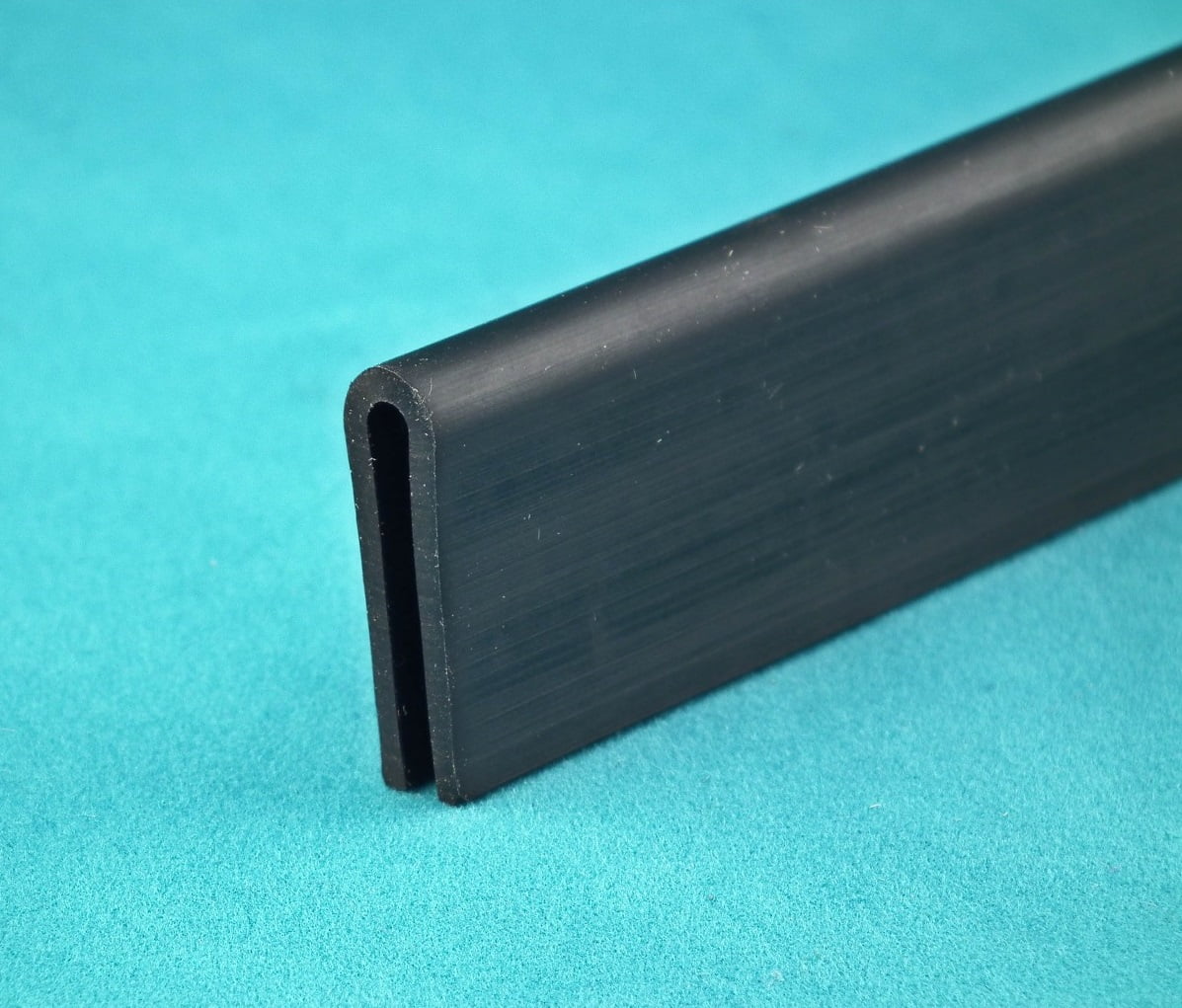

TPE U Channel – 7mm x 24mm

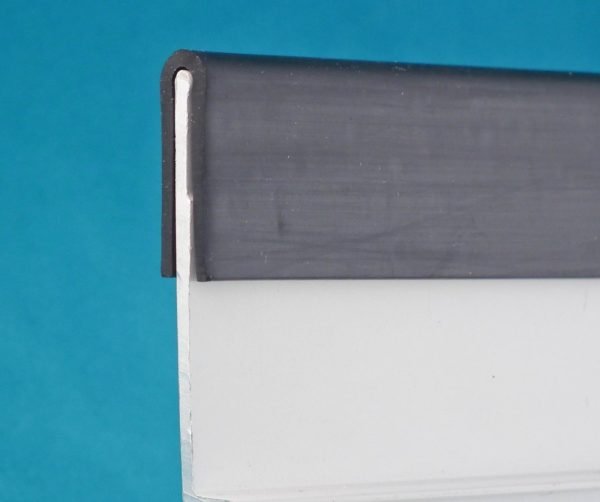

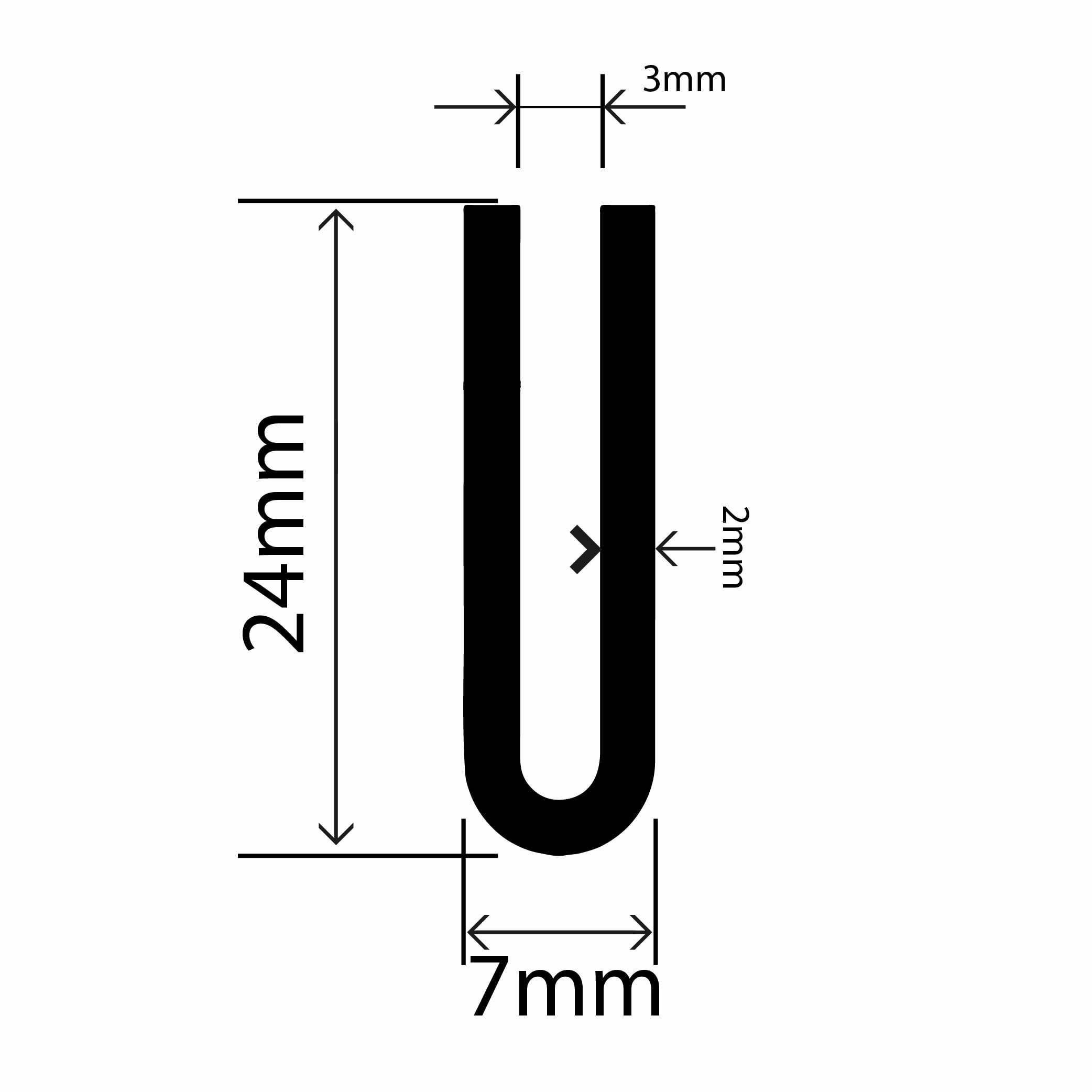

This TPE U channel – 7mm x 24mm is a large height profile impact protector. It is able to provide protection to both sheets and edges with a thickness of 3mm. This U channel has an overall height of 24mm with 22mm gripping arms. Increasing the size of the gripping arms ensures that a large portion of the U channel is in constant contact with the object it is protecting. This gives you two major benefits. First of all, it makes it easier to transfer any impact away from the sheet or edge. Finally, it ensures a larger anchor point, which increases grip and reduces the need for adhesive.

This U channel offers great resistance to weathering and chemicals, which ensures that you can use it in both indoor and outdoor applications with minimal maintenance. It also ensures that you can use this product in a wide variety of applications without fear of deterioration from chemicals. The high durability of this product also grants the U channel excellent age-resistant properties. This allows you to get a lot of use out of a single U channel without fear of deterioration over a long period.

Your Safety is Key

This TPE U channel – 7mm x 24mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool for reducing the risk of danger, whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please. Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

PropertiesValues
CompositionThermoplastic elastomer (TPE)
ApplicationsEdge protection, sheet metal, glass, furniture, safety tool
Size7mm x 24mm
Thickness2mm
Maximum temperature90°C
Minimum temperature-40°C
Product tolerance class (ISO 3302-1)E2 – L2 (click here to see data)

PDFs



Datasheet
